Monkey Saddle Surface

This is another popular “math surface” being rediscovered by designers nowadays, in 2012. Saddle surfaces, seen above as mentioned earlier (here) have a special type named “Monkey Saddle Surface”. This surface was a dramatic example of how Grasshopper can control equations and instantly show graphical results. The mathematical equations start with Z=… this makes it very easy for us to transform any x-y grid centers (a 2d data tree of 3d points) and add z values to them according to that equation. Monkey Saddle’s center point (0,0,0) is the only point with zero curvature. All other coordinates have negative curvature. This surface looks interesting when I animate it as shown below:

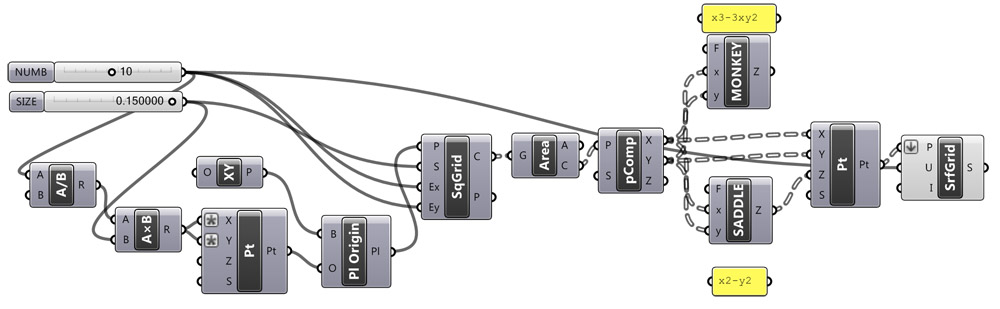

Interestingly, this surface is a similar (and idealized) version of my hand-made test surfaces for Grasshopper experiments. Maybe I’ll use this one to test GH definitions from now on. Please be aware that this definition draws both surfaces at the origin of Rhino space, which is tiny. So don’t forget to zoom in. It’s fun to play with. In fact, the definition is capable of generating any equation surface, other than the famous Monkey Saddle Surface. For example, here is what happens when I enter cos(x2+y2)*0.33 into the function;
